AEROMIST 1000
Introducing the AEROMIST 1000, a state-of-the-art air-assisted sprayer (or air-blast sprayer) built to cater to the evolving needs of modern orchards. Designed with precision and efficiency, the AEROMIST 1000 ensures exceptional performance across various crops, including grapes, pomegranates, oranges, and more.
This advanced mist sprayer optimizes coverage and application, making it a reliable choice for orchard management.
Product Highlights:
With best in Class Italian Bertolini Diaphragm Pump
2 Year Warranty*
Suitable for 24 HP & above orchard tractor
Advanced Air Conveyor System
Doorstep Service
Features:
Reduced Drift
The air stream helps to direct the spray more accurately, reducing drift and minimizing off-target application.
Reduced Chemical Usage
With more efficient application and better coverage, the amount of chemicals used can be reduced, which is both cost-effective and environmentally friendly.
Multi Functional Sprayer
This sprayers can be used with a variety of liquids, including pesticides, fungicides, PGR, and liquid fertilizers, making them suitable for different applications. This sprayer can be used for dipping and thinning application.
5 Mode Manual Brass Controller
It help to maintains optimal spraying pressure to ensure uniform droplet size and coverage. It also helps to On/Off left or right manifold section. Corrosion resistant and hence giving long operational life.
Adjustable Spray Patterns
Adjustable nozzle holder allows user to customize the spray pattern and droplet size according to specific needs by selecting 1.0 Disc or ATR nozzle.
Safety Device
Shock Absorbing Innova Rubber Coupling, Pressure Relief Valve.
3 Tank System
Dedicated tanks for Spraying, Circuit washing and Hand wash. Brass agitator for proper agitation of chemical inside the main tank with in-built strainer.
Adjustable Axle & Sturdy Tyre
Track width, Ground clearance and Tunring centre distance adjustment as per field need. Lug type sturdy tubeless tyre.
Increased Efficiency
By improving coverage and by saving chemicals, water, time and tractor diesel, this sprayer is more cost-effective, as less chemical is needed to achieve the desired results.
Durable Construction & Rust Protection
Sprayer is built with durable & heavy duty materials such as SS 304 for shell assembly, Hot Deep Galvanized mild steel for chassis, Corrosion-resistant brass and virgin high quality plastic to withstand harsh chemicals and rough handling.
Better Penetration
The high-velocity air stream helps the spray penetrate dense foliage, ensuring that the product reaches all parts of the plant.
Enhanced Coverage
The air-assistance (Air-Blast) creates a fine mist that ensures even distribution of the spray over the target area, reducing the amount of chemical needed.
Product Variants

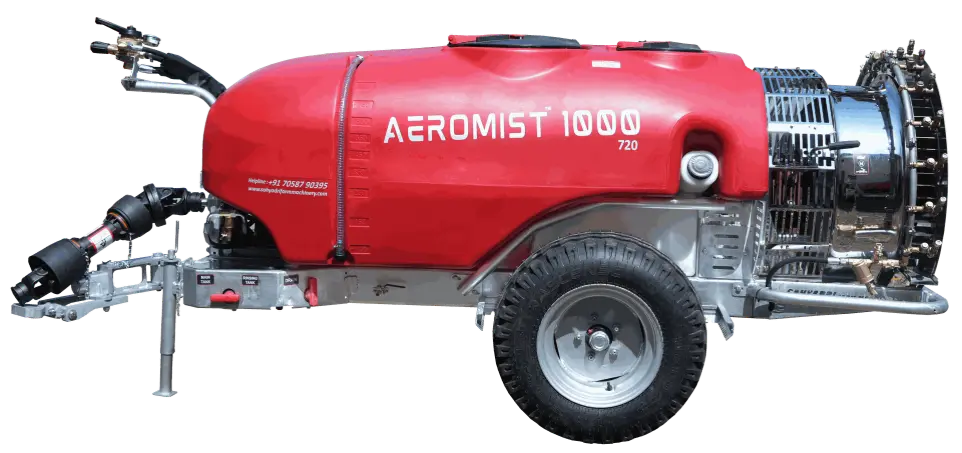

AEROMIST 1000 - 720
- Diaphragm Pump: PA 730 / PAS 830
- Fan Size: 715 mm
- Nozzles (LECHLER 0 1.0 Disc + ATR): 14 Nos
- Gearbox: 2 Speed + 1 Neutral
- Air Output, m3/hr [m/s]: 24000 to 26000 [32 to 35]
- Weight: 465 Kg
- Recommended Tractor Hp: 34 hp & Above
AEROMIST 1000 - 620
- Diaphragm Pump: PA 730
- Fan Size: 620 mm
- Nozzles (LECHLER 0 1.0 Disc + ATR): 12 Nos
- Gearbox: 2 Speed + 1 Neutral
- Air Output, m3/hr [m/s]:19000 to 21000 [29 to 32]
- Weight: 440 Kg
- Recommended Tractor Hp: 27 hp & Above
